DG5000 Pro Series   |  Function / Arbitrary Waveform Generators

DG5000 Pro
With up to 2.5 GSa/s sample rate and 64 Mpts/CH memory depth (128 Mpts/CH optional), the DG5000 Pro Series Function/Arbitrary Waveform Generator is an all-in-one generator that integrates Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, and Analog/Digital Modulator. It is a multi-functional and cost-effective dual-channel function/arbitrary waveform generator.
DG5000 Pro Series Data Sheet
Product Feature Customer Benefit
Ground Isolation Both channels are isolated from earth ground to eliminate ground loops and improve output stability.
Multi-pulse Output Function Generate pulse signals with adjustable edge and pulse width to help users perform the Double Pulse Test quickly.
IQ Digital Modulation Rapid generation of IQ modulation signals supports communication system performance verification and DSP evaluation.
Modulated Signal Generation Supports analog and digital modulation types, including AM, FM, PM, ASK, FSK, PSK, and PWM. Also features a modulated input.
Sequence Mode Enables the playback of intricate pattern segments, with looping of up to 512 cycles. Complex functions like repeat, wait, event, and jump are supported.
Integrated harmonic generator (max 20th order) Provides a more accurate test method for devices like high-order filters and amplifiers.

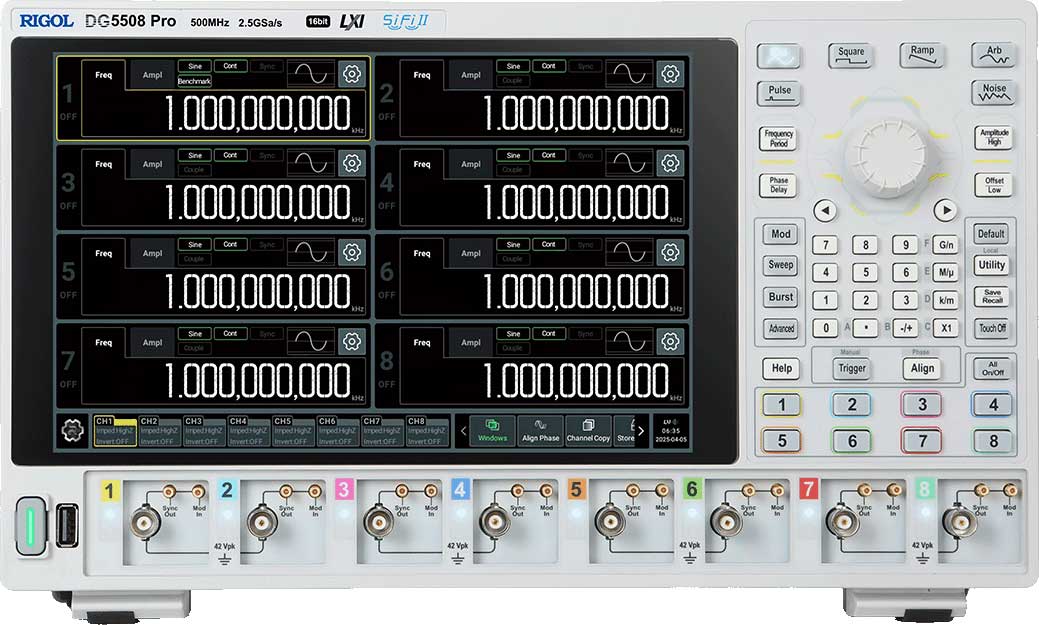

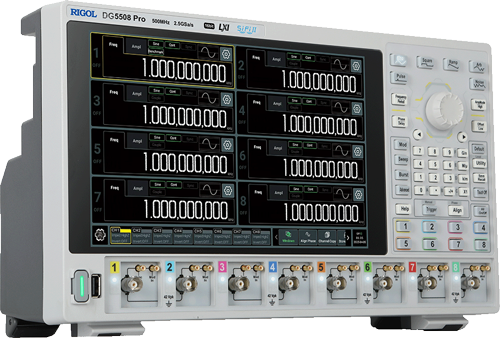

Product View

DG5000 Pro
Purchasing Info
Buy Now Request Quote
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 DG5000 Pro Series Data Sheet   Firmware

Specs

Please scroll to the sides when using small displays
Model Max Output FrequencySample RateVertical ResolutionWaveform Memory DepthChannels Price (CAD)
Model DG5252 Pro Max Output Frequency 250 MHzSample Rate 2.50 GSa/sVertical Resolution 16 bitsWaveform Memory Depth 64 Mpts/CH (128 Mpts opt.) Channels 2 channels Price (CAD) $2,328
Model DG5352 Pro Max Output Frequency 350 MHzSample Rate 2.50 GSa/sVertical Resolution 16 bitsWaveform Memory Depth 64 Mpts/CH (128 Mpts opt.) Channels 2 channels Price (CAD) $5,068
Model DG5502 Pro Max Output Frequency 500 MHzSample Rate 2.50 GSa/sVertical Resolution 16 bitsWaveform Memory Depth 64 Mpts/CH (128 Mpts opt.) Channels 2 channels Price (CAD) $7,534
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

 DG5000 Pro Latest Firmware

Drivers

Software

 Ultra Station Software (New) UltraSigma Instrument Connectivity Driver
Please scroll to the sides when using small displays

Options Bundle

DG5000 Pro-BND
DG5000 Pro BND Option



$1,369

Deep Arb Memory

DG5000 Pro-2RL
DG5000 Pro 128 Mpts/CH (Max.) Arb Length Upgrade Option



$464

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Options Bundle

DG5000 Pro-BND
DG5000 Pro BND Option



$1,369

Deep Arb Memory

DG5000 Pro-2RL
DG5000 Pro 128 Mpts/CH (Max.) Arb Length Upgrade Option



$464

IQ Modulation

DG5000 Pro-IQ
DG5000 Pro IQ Modulation Option



$464

Multi-Pulse

DG5000 Pro-MPUL
DG5000 Pro Multi-pulse Output Option



$464

Multi-Tone

DG5000 Pro-MTONE

DG5000 Pro Multi-Tone Option



$464

Pattern Generator

DG5000 Pro-PJ
DG5000 Pro Pattern Generator Option



$464

Sequence Mode

DG5000 Pro-SEQ
DG5000 Pro Advanced Sequence Function



$464

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays
