DS70000 Series   |  Digital Oscilloscopes

DS70000

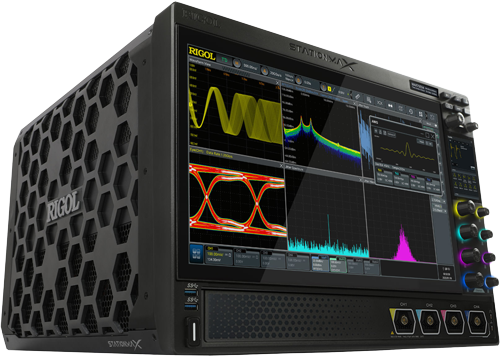

DS70000 series is RIGOL's 7th generation of the digital oscilloscope. Built on RIGOL's "Phoenix" platform, it delivers excellent performance with a maximum sample rate of 20 GSa/s, 5 GHz real-time bandwidth. In addition to the improvement of hardware specification, the DS70000 series also has many user-friendly designs to ensure high-quality user experience.
DS70000 Series Data SheetAutomotive Ethernet Compliance Test Solution Datasheet
Product Feature Customer Benefit
Higher bandwidth & sampling DS70000 series digital oscilloscope is equipped with "Phoenix" chip set, which delivers a max. of 20 GSa/s sample rate and 5 GHz bandwidth to better achieve signal fidelity, cover more application scenarios, and cater to the diversified application demands of the complex test system in the industry and R&D fields.
Industry-leading Performance With RIGOL's unique UltraVision III platform built on our custom ASIC technology, the DS70000 series digital oscilloscope delivers industry leading performance specifications including memory depth, waveform capture rate, and vertical resolution. It supports analysis of serial data on computer, embedded, automotive, audio and additional bus types.
Multiple External Interfaces The DS70000 series provides a variety of external interfaces that improve usability and data access including USB 3.0 Host and Device, LAN (LXI), НDMI, AUX OUT, 10 MHz IN, 10 MHz Out and GPIB (option) via the USB-GPIB adaptor. For remote control over LAN, the DS70000 includes complete web control with web-based screen recording.

Product View

DS70000
Whitepapers
Purchasing Info
Buy Now
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 DS70000 Series Data Sheet Automotive Ethernet Compliance Test Solution Datasheet   Firmware

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsBandwidthReal-time Sample RateMax Memory DepthWaveform Capture Rate Price (CAD)
DS70304 4 3 GHz20 GSa/s500 Mpts2 Gpts (opt)1000000 wfms/s Request a Quote
DS70504 4 5 GHz20 GSa/s500 Mpts2 Gpts (opt)1000000 wfms/s Request a Quote
 Compare Product Families

App Notes

Please scroll to the sides when using small displays

4 Passive Probes

RP3500A 500 MHz Passive Probes

Test Fixture

TF-AENET-CME-STP

Automotive Ethernet Common-Mode Emission Test Fixture

Test Fixture

TF-ENET-STP

100M/1000M Ethernet Compliance Test Fixture

Test Fixture

TF-ENET10G-RL-STP

10M/100M/1000M/2.5G/5G/10G Return-loss Test Fixture

Test Fixture

TF-USBD-STP

USB2.0 Device Compliance Test Fixture

Test Fixture

TF-USBH-STP

USB2.0 Host Compliance Test Fixture

Test Fixture

TFB-AENET-MAT-STP

Automotive Ethernet MATEnet Compliance Test Fixture KIT

Test Fixture

TFB-AENET-MTD-STP

Automotive Ethernet H-MTD Compliance Test Fixture KIT

Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays

Functional Options

DS70000-10MAUTOC
10M Automotive Ethernet Compliance Test (T1S)

$7,139.88

Functional Options

DS70000-10MINDUC
10M Industrial Ethernet Compliance Test(T1L)

$7,139.88

Functional Options

DS70000-AENETC
100M/1000M Automotive Ethernet Compliance Test

$9,529.08

Functional Options

DS70000-AEROA

MIL-STD1553 bus triggering and analysis options

$3,298.68

Functional Options

DS70000-AUDIOA

Audio Bus I2S Protocol Triggering and Decoding

$3,298.68

Functional Options

DS70000-AUTOA

Automotive Serial Bus CAN/CAN-FD, LIN Triggering and Decoding

$3,298.68

Functional Options

DS70000-DPHY12C
MIPI D-PHY1.2 Compliance Test

$9,529.08

Functional Options

DS70000-EMBDA

I2C/SPI Bus trigger and analysis options

$3,298.68

Functional Options

DS70000-ENETC

100/1000M Ethernet Conformance Test

$11,931.48

Functional Options

DS70000-JITTA

Eye Diagram & Advanced Jitter Analysis

$9,529.08

Functional Options

DS70000-RFFEA

MIPI-RFFE Protocol Analysis Option

$3,298.68

Performance Upgrade

DS70000-RL-20

Storage depth upgrade option

$7,786.68

Functional Options

DS70000-RTSA

Real time spectrum analysis option

$7,786.68

Functional Options

DS70000-USBA

USB2.0 Protocol Analysis Option

$3,298.68

Functional Options

DS70000-USBC

USB 2.0 Signal Quality Compliance Test

$4,750.68

Please scroll to the sides when using small displays

Passive Probe

RP3500A
500 MHz Passive Probe

$304.92

Active Probe

PVA8350

3.5 GHz Bandwidth Active Probe for the DS70000 Oscilloscope

$7,786.68

Active Probe

PVA8700

7 GHz Bandwidth Active Probe for the DS70000 Oscilloscope

$11,614.68

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators

$25.08

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)

$26.40

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe

$1,054.68

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe

$1,318.68

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe



$2,098.80

Optical-fiber Isolated Probe

PIA1050

500 MHz optical isolation probe, standard with one 50x and one 2000x attenuator.

$13,198.68

Optical-fiber Isolated Probe

PIA1100

1 GHz optical isolation probe, standard with one 50x and one 2000x attenuator.

$20,062.68

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply

$2,059.20

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak

$1,144.44

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.

$4,498.56

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.

$6,479.88

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.

$5,718.24

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise

$7,246.80

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation

$691.68

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation

$1,370.16

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp

$1,040.16

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE

$320.76

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp

$624.36

Method:LooKup
