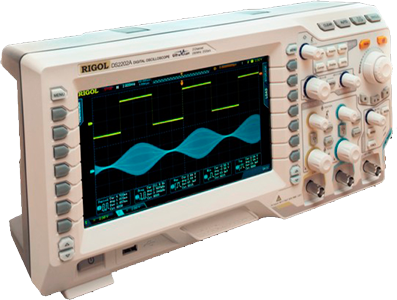

2000 Series   |  Mixed Signal Oscilloscopes

2000
The 2000 Series digital oscilloscope is another Best-In-Class instrument from Rigol offering an unmatched feature/value package. The 2000 Series Oscilloscopes bring advanced triggering, large display, and decoding features to customers with a limited budget. This new, low starting price enables customers to analyze higher speed signals with a larger display for less than previously possible. The 2000A Series is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications. The MSO models add 16 bits of mixed signal logic channels with included RPL2316 digital probe kit. The '-S' modles provide an embedded 2 channel, 25 MHz waveform generator.

All previous 2000A Series software options are now included free in any new purchase. No license or option is required.
MSO/DS2000A Datasheet & Specs Compare Rigol
Product Feature Customer Benefit
Low Noise floor with wide vertical range (500uV/div ~ 10V/div) More easily spot and capture small signals and glitches with the lower noise front end on the 2000A Series.
More easily spot and capture small signals and glitches with the lower noise front end on the 2000A Series.   With a lower noise range setting at 500uV/div as well as included 50 Ohm termination and a clean frequency response design, the 2000 Series oscilloscope enables more sophisticated analysis of low level signal artifacts that can effect your design.
Waveform Record and Playback Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.
Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.   Waveform Analysis captures thousands of frames and compares them using a pass/fail mask or deviation quickly driving to the root cause of seemingly erratic or random events.
16 Digital Channels (MSO Models) Time correlated views between analog and digital channel speeds debug of embedded designs
Time correlated views between analog and digital channel speeds debug of embedded designs   The MSO2000A models add Mixed Signal Capabilities allowing users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.
UltraVision Technology Advanced display and analysis capabilities combine with deep memory and high waveform update rate in RIGOL's UltraVision oscilloscope technology
Advanced display and analysis capabilities combine with deep memory and high waveform update rate in RIGOL's UltraVision oscilloscope technology   The ability to easily move between long record lengths, fast capture, a variety of persistence modes, and onboard waveform analysis makes RIGOL's core oscilloscope technology an important capability for engineers from maker projects to large scale R&D.
Integrated 2 Channel full function 25MHz generator Debug and emulate signals all in one instrument
Debug and emulate signals all in one instrument   Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the "-S" models adds value and capability to the bench for a variety of applications.

Product View

2000
Whitepapers
App Note - Advanced Embedded DebugDebug and Analysis Considerations for Optimizing Signal Integrity
Purchasing Info
Buy Now Request Quote
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
Compare Rigol with the competition  MSO/DS2000A Datasheet & Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model BandwidthAnalog ChannelsEmbedded GeneratorDigital Channels Price (CAD)
DS2102A 100 MHz2 NANA $862
MSO2102A 100 MHz2 NA16 $1,355
MSO2102A-S 100 MHz2 NA16 $1,725
DS2202A 200 MHz2 NANA $903
MSO2202A 200 MHz2 NA16 $1,437
MSO2202A-S 200 MHz2 NA16 $1,889
DS2302A 300 MHz2 NANA $1,081
MSO2302A 300 MHz2 NA16 $1,711
MSO2302A-S 300 MHz2 NA16 $2,067
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

icon

Software

icon icon icon icon icon icon icon icon icon icon icon icon icon
Please scroll to the sides when using small displays

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp

$936

Carrying Case

BAG-G1
Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope.

$212

Please scroll to the sides when using small displays

Probes - PVP2350 (Qty. 2)
Qty. 2 of PVP2350 - 350 MHz Passive Probe with 1x:10x selector. Wide bandwidth of 35 MHz in 1x mode.

RPL2316
Logic Probe for MSO2000A, MSO4000, and MSO7000 Series Oscilloscopes. Included with MSO models only. Includes cable, leads and grabber clips

Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays

Option Bundle

BND-MSO/DS2000A
MSO/DS2000A option bundle including MEM-DS2000, AT-DS2000, SD-DS2000, CAN-DS2000. Special bundle available for a limited time. This option enables deep memory, serial decoding including CAN bus as the advanced triggering options listed in the User's Guide.

$352

Please scroll to the sides when using small displays

Arbitrary Wave Generation Software

Ultra Station-adv
Full advanced version of UltraStation wave generation software for DG1000Z, DG4000, DG5000 Series generators as well as DS1000Z and DS2000A "-S" embedded generators. This is a software upgrade license.

$158

Power Analysis Software

UPA-DS
Power Analysis Software for Oscilloscopes

$1,206

Please scroll to the sides when using small displays

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak

$2,454

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp

$936

Demo Board

DK-DS6000
Demonstration signal board for RIGOL Oscilloscopes

$316

Passive Probe

PVP2350

350 MHz Passive Probe with 1x:10x selector. Wide bandwidth in 1x mode up to 35 MHz.

$64

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp

$648

Power Analysis Jig

RPA246

Power analysis phase difference correction jig

$81

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.

$474

Passive Probe

PVP3150
10x 1x selectable passive probe with 10x bandwidth of 150 MHz and 1x bandwidth of 20 MHz

$48

Rack Mount Kit

RM-DS2000
Rack Mount Kit for the DS2000 and DS2000A Series Oscilloscope

$538

Carrying Case

BAG-G1
Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope.

$212

High Voltage Probe

RP1050H
High Voltage 15KV (1000:1), 50MHz Passive Probe. AC:Pulse = 30KVpp AC:Sine= 10KVrms

$1,369

Digital Probe Kit

RPL2316
Logic Probe for MSO2000A. Includes cable, leads and grabber clips.

$547

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators

$26

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)

$27

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe

$1,095

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe

$1,369

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe



$2,178

Optical-fiber Isolated Probe

PIA1050

500 MHz optical isolation probe, standard with one 50x and one 2000x attenuator.

$21,508

Optical-fiber Isolated Probe

PIA1100

1 GHz optical isolation probe, standard with one 50x and one 2000x attenuator.

$32,331

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply

$2,137

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak

$1,188

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.

$4,669

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.

$6,725

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.

$5,935

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise

$7,521

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation

$718

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation

$1,422

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp

$1,080

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE

$333
