High Performance RF signal generation and modulation

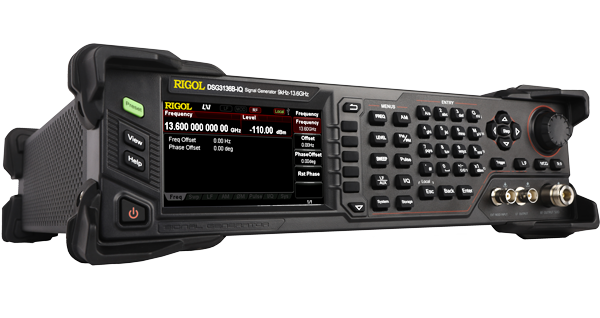

RF Signal Generator
|Product Feature||Customer Benefit|
|High Power Output up to +25 dBm||Simplifies high power setups. No external amplifier needed.|
|Advanced Modulations||Engineers can generate more complex signals without additional hardware using the modulation schemes in the DSG3000B.|
Advanced modulations including internal IQ, pulse, and pulse train are options, while AM, FM, and øM are standard on the DSG3000B Series instruments.
|IQ Modulation||Provides both internal and external IQ modulation capabilities. Accepts User Defined I/Q data. Minimizes workbench footprint while maximizing functionality.|
Different forms of IQ Modulation are utilized in many of the more advanced RF specifications including WiFi. The DSG3000B can be used to emulate IQ data using either the internal baseband generator or external inputs.
IQ Station software is the free PC interface for loading and modulating data into the baseband IQ generator.
|High Accuracy timebase option||Your source is only as good as your reference. Stable and accurate clock provides basis for high performance RF output.|
The Model OCXO-B08 option is a hardware module that inserts into the DSG3000B Series generator. It can be purchased at any time and improves clock stability to 5 ppb.
Search our Support Library
Look through our library of FAQs or ask a question on our support site.Contact Tech Support Read about our 3 Year Warranty
|Model||Max. Frequency||Phase Noise||Amplitude Accuracy (typical)||Price (CAD)|
|DSG3065B||6.5 GHz||<-116 dBc/Hz||<0.5 dB||$13,499|
|DSG3065B-IQ||6.5 GHz||<-116 dBc/Hz||<0.5 dB||$21,599|
|DSG3136B||13.6 GHz||<-116 dBc/Hz||<0.5 dB||$17,499|
|DSG3136B-IQ||13.6 GHz||<-116 dBc/Hz||<0.5 dB||$24,299|
To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments
For help writing your own programs for our instruments review the programming manual or contact us directly.
