DHO900 Series   |

Compact Size, Various Interfaces

DHO900
The DHO900 series is RIGOL's high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 50 Mpts memory depth, 12 bits resolution, and low noise.The DHO900 series supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields.
DHO900 datasheet
Product Feature Customer Benefit
12 Bit Resolution 16x improvement in quantization uncertainty
16x improvement in quantization uncertainty

12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.
Designed with a Type-C power interface Support Type-C Power
Support Type-C Power

Designed with a Type-C power interface, the DHO900 can be powered by just a portable power source, enabling on-site testing.
Supports Bode Plot Analysis DHO900S model comes with a signal generator and Bode plot capability
DHO900S model comes with a signal generator and Bode plot capability

The DHO900S series comes standard with Bode plot loop analysis function, effectively addressing switching power loop response analysis.
Standard Digital Channels Allow digital signal analysis when paired with the PLA2216 logic analysis probe
Allow digital signal analysis when paired with the PLA2216 logic analysis probe

The entire DHO900 series comes equipped with digital channels as standard, allowing digital signal analysis when paired with the PLA2216 logic analysis probe.

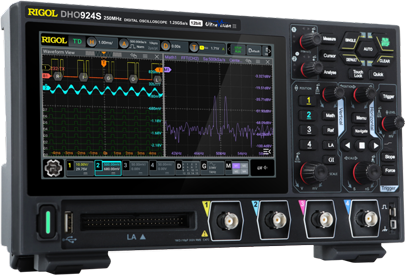

Product View

DHO900
Whitepapers
App Note - Advanced Embedded Debug
Purchasing Info
Buy Now Clearance Stock
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 DHO900 datasheet   Firmware

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsVertical ResolutionBandwidthReal-time Sample RateMax Memory DepthWaveform Capture Rate Price (CAD)
DHO914 4 12 Bit125 MHz1.25 GSa/s50 Mpts1000000 wfms/s $870In Stock
DHO914S 4 12 Bit125 MHz1.25 GSa/s50 Mpts1000000 wfms/s $1,015
DHO924 4 12 Bit250 MHz1.25 GSa/s50 Mpts1000000 wfms/s $1,015In Stock
DHO924S 4 12 Bit250 MHz1.25 GSa/s50 Mpts1000000 wfms/s
