RSA800 Series   |

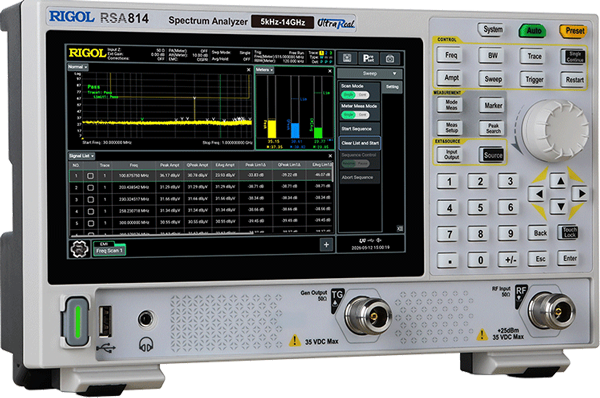

RSA800
The RSA800 Series is designed for electronics R&D, education, and RF enthusiasts. It combines 40 MHz real-time bandwidth, a built-in preamplifier, excellent residual response, a 7-inch multi-touch display, and a full SCPI command set. Covering 5 kHz to 14 GHz, it supports RF measurements for cellular, Wi-Fi, satellite C-/Ku-band, and short-range wireless applications. Optional VSA, ADM, and EMI applications further extend its measurement capabilities.
RSA800 Datasheet
Product Feature Customer Benefit
Compact in Size. Powerful in Performance. Every model weighs just 1.9 kg. Pack it into the RIGOL Ultra-Portable Instrument Bag and take professional RF testing wherever your work takes you.
Standard USB Type-C PD Power Supports the mainstream USB Power Delivery (PD) standard via the Type-C interface. Power it with a portable power bank for business travel and field testing, no AC outlet required.
Capture Every Signal in Real Time 40 MHz Real-Time Spectrum Analysis: Reliably captures transient and intermittent signals in complex RF environments. 40 MHz Vector Signal Analysis Bandwidth: Enables in-depth analysis and performance evaluation of a wide range of broadband communication signals.
Premium Features. Standard Included. No more essential add-ons. The RSA800 comes standard with a built-in preamplifier (PA) and 40 MHz real-time bandwidth. Its integrated tracking generator (TG) can also operate seamlessly as a standalone signal generator (SG).
Comprehensive Measurement Applications The RSA800 integrates a comprehensive suite of RF measurement applications, with software options available to expand functionality as your testing requirements evolve.

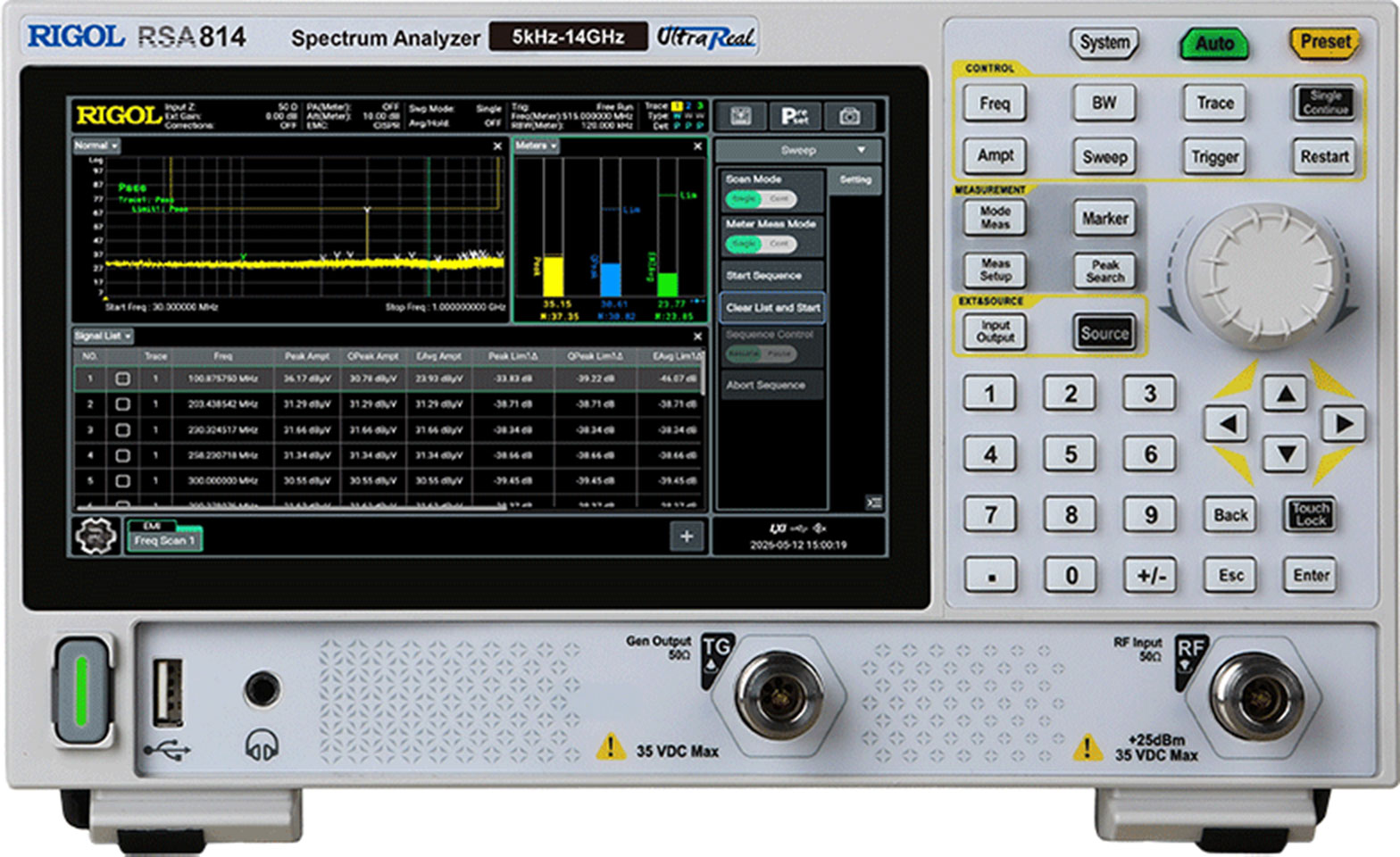

Product View

RSA800
Whitepapers
Purchasing Info
Buy Now
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 RSA800 Datasheet   Firmware

Specs

Please scroll to the sides when using small displays
Model FrequencyReal-Time BandwidthPhase NoiseDANLTracking Generator Price (CAD)
RSA804 5 kHz ~ 4.5 GHz1Hz~10MHz-112 dBc/Hz-168 dBmYes $3,166.68
RSA808 5 kHz ~ 8.5 GHz1Hz~10MHz-112 dBc/Hz-168 dBmYes $5,806.68
RSA814 5 kHz ~ 14 GHz1Hz~10MHz-112 dBc/Hz-168 dBmYes $10,558.68
 Compare Product Families
Please scroll to the sides when using small displays

Rackmount Kit

RM5041

The RM5041 is compatible with the DHO800, DHO900, MHO900, DG800 Pro, DG900 Pro, and DM858 series.

Calibration Certificate

Power Cord

Please scroll to the sides when using small displays

Application Options

RSA800-ADM

Analog Demodulation Application Software

$605.88

Functional Options

RSA800-AMK

Advanced Measurement Kit

$355.08

Application Options

RSA800-EMI

EMI Measurement Application Software

$605.88

Application Options

RSA800-PNOISE

Phase Noise Measurement

$605.88

Application Options

RSA800-VSA

Vector Signal Analysis Application Software

$1,186.68

Please scroll to the sides when using small displays

Instrument Carrying Case

BAG-800

Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800, MHO900, RSA800, DNA800

$91.08

High Power Attenuator

ATT03301H
30dB High Power Attenuator, Max Power 100W

$303.60

N Type Cable

CB-NM-NM-75-L-12G
N(M)-N(M) RF Cable

$262.68

SMA Cable

CB-NM-SMAM-75-L-12G
N(M)-SMA(M) RF Cable

$262.68

Utility Kit

DSA Utility Kit
DSA Accessories Package including cables, adaptors, and antennas.

$1,096.92

RF Attenuator Kit

RF Attenuator Kit
Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs)

$691.68

RF CATV Kit

RF CATV Kit
Kit Includes 50 to 75 Ohm Adaptors (2pcs)

$553.08
