DNA800 Series   |  VECTOR NETWORK ANALYZERS

DNA800
The DNA800 Series is an ultra-portable entry-level vector network analyzer featuring a true two-port architecture and frequency coverage from 5 kHz to 14 GHz. In a compact form factor, it delivers comprehensive S-parameter and impedance measurements. With a typical 125 dB dynamic range, 1 Hz to 3 MHz IF bandwidth, and 0.005 dB rms trace noise, it is well suited for testing passive components, filters, and matching networks. A 7-inch multi-touch display, HDMI output, and full SCPI remote control with compatibility for mainstream command sets simplify automated testing in both laboratory and production environments.
DK-DNA10_DataSheetDNA800 DatasheetECalModule_DatasheetRF-Cable_DataSheet
Product Feature Customer Benefit
Compact in Size. Powerful in Performance. Every model weighs just 1.9 kg. Pack it into the RIGOL Ultra-Portable Instrument Bag and take professional measurements wherever your work takes you.
Standard USB Type-C PD Power Supports the standard USB Power Delivery (PD) protocol via the Type-C interface. Power the instrument with a power bank for business travel and field testing.
Dual Ports. Wide Frequency Coverage. Frequency coverage from 5 kHz to 14 GHz. A true two-port architecture supports full S-parameter (S11 / S12 / S21 / S22) and impedance measurements. Two units can be cascaded for expanded port configurations.
Complete VNA Functionality All models support port extension, fixture de-embedding, Pass/Fail testing, and DTF/TDA cable fault and impedance analysis. Multiple data formats and multi-window display improve measurement efficiency.
New Electronic Calibration Kits The new ECAL300/400 Series electronic calibration kits simplify two-port calibration with plug-and-calibrate convenience. Precision mechanical calibration kits are also supported to meet different application requirements.
Standard USB, LAN and HDMI Connectivity USB and LAN interfaces support remote communication with the standard SCPI command set. An HDMI output enables connection to an external display for enhanced viewing.
WebControl Access and control the instrument through a web browser using its IP address, no PC software installation required. Ideal for remote operation and SCPI command debugging.

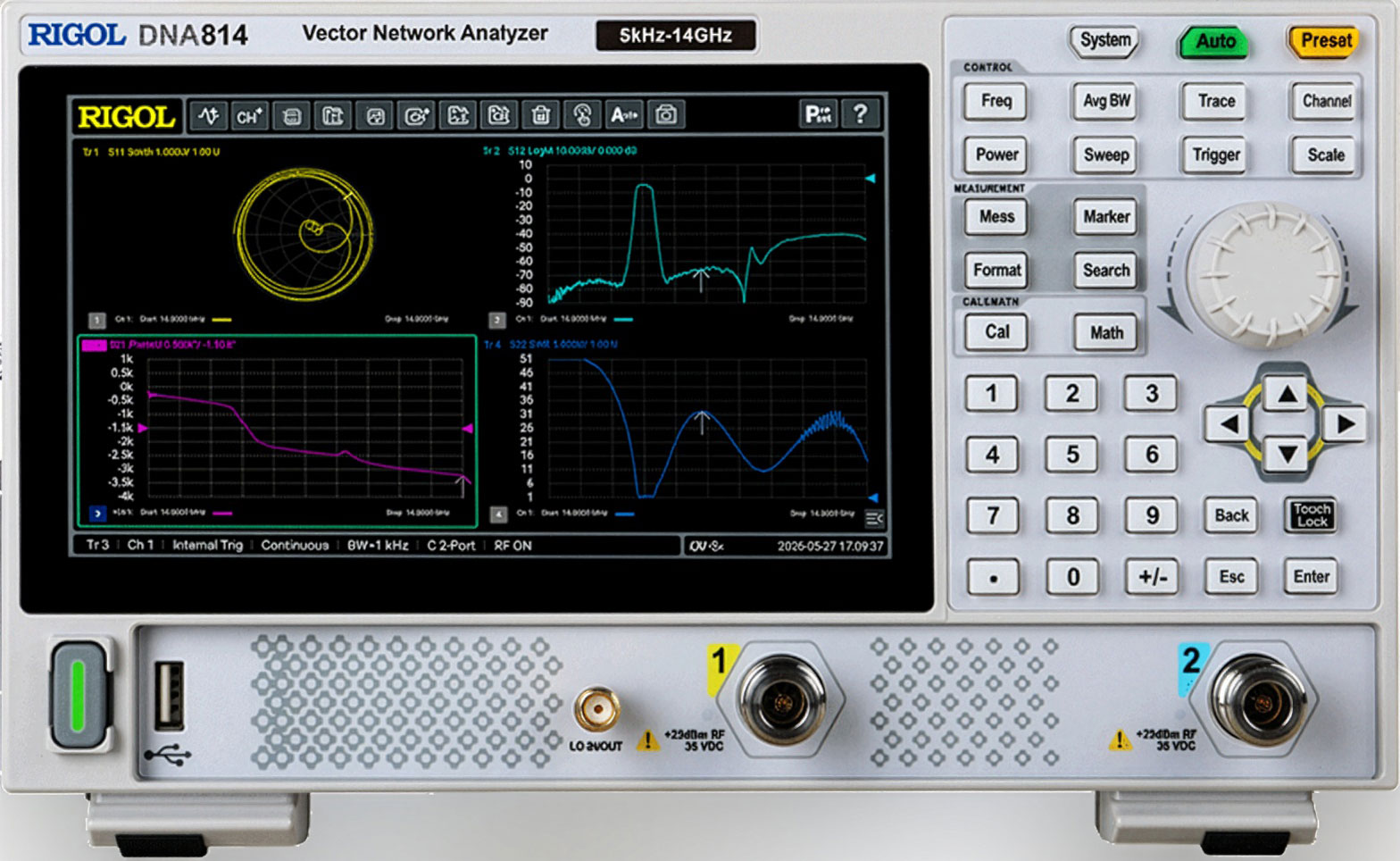

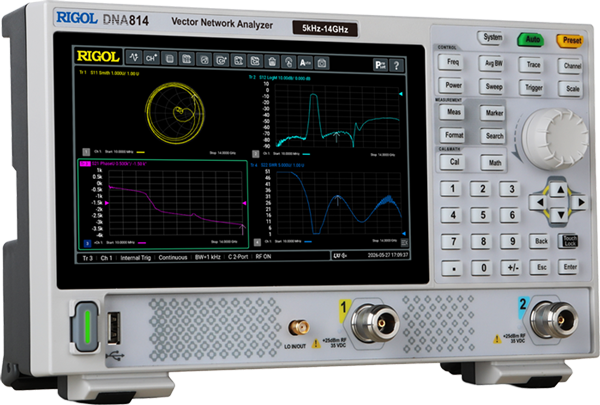

Product View

DNA800
Whitepapers
Purchasing Info
Buy Now
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 DK-DNA10_DataSheet DNA800 Datasheet ECalModule_Datasheet RF-Cable_DataSheet   Firmware

Specs

Please scroll to the sides when using small displays
Model PortsFrequency RangeHigh Dynamic Range Price (CAD)
DNA804 2 5 kHz ~ 4.5 GHz125 dB (typ.) $4,750.68In Stock
DNA808 2 5 kHz ~ 8.5 GHz125 dB (typ.) $7,918.68
DNA814 2 5 kHz ~ 14 GHz125 dB (typ.) $13,198.68
 Compare Product Families

App Notes

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

icon DNA800_Firmware_Update_v1.00
Please scroll to the sides when using small displays

Cable

CB6100B
RF Cable, DC ~ 50 GHz, 2.4 mm (m) - 2.4 mm (m), 100 cm

Cable

CB6101B
RF Cable, DC ~ 50 GHz, 2.4 mm (m)- 2.4 mm (f), 100 cm

Cable

CB6200A
RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) - 3.5 mm (f), 100 cm

Cable

CB6200B
RF Cable, DC ~ 26.5 GHz, 2.4mm (m) - 3.5mm (m), 100 cm

Cable

CB6201A
RF Cable, DC ~ 18 GHz, SMA (m) - SMA (f), 100 cm

Cable

CB6201B
RF Cable, DC ~ 26.5 GHz, 2.4mm (m) - 3.5mm (f), 100 cm

Cable

CB6202A
RF Cable, DC ~ 18 GHz, N (m) - N (f), 100 cm

Cable

CB6203A
RF Cable, DC ~ 18 GHz, N (m) - SMA (f), 100 cm

Cable

CB6204A
RF Cable, DC ~ 18 GHz, N (m) - 3.5mm (f), 100 cm

ECAL

ECAL109-NF4
Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 4 ports

ECAL

ECAL114-NF4
Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 4 ports

ECAL

ECAL126-35F4
Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 4 ports

ECAL

ECAL209-NF4
Electronic Calibration Module, DC ~ 9 GHz, Type-N (f), 50 Ω, 4 ports

ECAL

ECAL214-NF4
Electronic Calibration Module, DC ~ 14 GHz, Type-N (f), 50 Ω, 4 ports

ECAL

ECAL226-35F4
Electronic Calibration Module, DC ~ 26.5 GHz, 3.5 mm (f), 4 ports

MCAL

MCAL114-NK1
Mechanical Calibration Kit, DC ~ 14 GHz, Type-N (m & f), 50 Ω

MCAL

MCAL118-APC7
Airline Fixture and Calibration Kit

MCAL

MCAL214-35F5
4-in-1 OSLT Mechanical Calibration Kit, DC ~ 14 GHz, 3.5 mm (f)

MCAL

MCAL214-35M5
4-in-1 OSLT Mechanical Calibration Kit, DC ~ 14 GHz, 3.5 mm (m)

MCAL

MCAL226-35M5
4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f)

Rackmount Kit

RM5041

The RM5041 is compatible with the DHO800, DHO900, MHO900, DG800 Pro, DG900 Pro, and DM858 series.
Please scroll to the sides when using small displays

Functional Options

DNA-DTF10

Distance to Fault

$1,318.68
$1,186.81

Functional Options

DNA-TAS10
VNA Test Automation Software

$10,558.68

Functional Options

DNA-TDA10

Time Domain Analysis

$2,110.68
$1,899.61

Functional Options

DNA-TDR10
Enhanced Time Domain Reflectometry

$11,878.68

Please scroll to the sides when using small displays

Instrument Carrying Case

Bag-800

Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800, MHO900, RSA800, DNA800

$91.08

ECAL

ECAL304-NF2

Basic ECal, 100 kHz ~ 4.5 GHz, Type-N (f), 50 Ω, 2 ports

$1,450.68

ECAL

ECAL304-SF2

Basic ECal, 100 kHz ~ 4.5 GHz, SMA (f), 50 Ω, 2 ports

$1,450.68

ECAL

ECAL309-NF2

Basic ECal, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 2 ports

$2,374.68

ECAL

ECAL309-SF2

Basic ECal, 100 kHz ~ 9 GHz, SMA (f), 50 Ω, 2 ports

$2,374.68

ECAL

ECAL314-NF2

Basic ECal, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 2 ports

$3,958.68

ECAL

ECAL314-SF2

Basic ECal, 100 kHz ~ 14 GHz, SMA (f), 50 Ω, 2 ports

$3,958.68

ECAL

ECAL404-NF2

Basic ECal, DC ~ 4.5 GHz, Type-N (f), 50 Ω, 2 ports

$1,450.68

ECAL

ECAL404-SF2

Basic ECal, DC ~ 4.5 GHz, SMA (f), 50 Ω, 2 ports

$1,450.68

ECAL

ECAL409-NF2

Basic ECal, DC ~ 9 GHz, Type-N (f), 50 Ω, 2 ports

$2,374.68

ECAL

ECAL409-SF2

Basic ECal, DC ~ 9 GHz, SMA (f), 50 Ω, 2 ports

$2,374.68

ECAL

ECAL414-NF2

Basic ECal, DC ~ 14 GHz, Type-N (f), 50 Ω, 2 ports

$3,958.68

ECAL

ECAL414-SF2

Basic ECal, DC ~ 14 GHz, SMA (f), 50 Ω, 2 ports

$3,958.68
