DG1000 Series   |

Arbitrary Waveform Function Generators

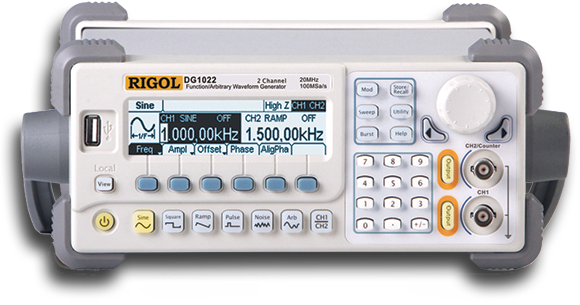

DG1000
RIGOL DG1000 series function/arbitrary waveform generators use Direct Digital Synthesis (DDS) technology. They can generate accurate, stable, clean, low distortion signals.  Each channel can create sine, square, ramp, pulse,or noise signals and coordinate with the other channel. These instruments each have 2 channels with the 2nd channel having a lower voltage output. Each DG1000 can output 4055 point arbitrary waves.
Check out our new DG800 Pro Series Generators that combines competitive performance with a 7” touch screen and compact chassis
Product Feature Customer Benefit
Up to 100 MSa/sec Sample Rate Provides fine resolution and detail in MHz speed signals
AM, FM, PM, FSK, and linear/logarithm Sweep and Pulse train waveform outputs Multiple modulation functions make evaluating and emulating devices communication protocols simple and straightforward.
Up to 48 built-in waveforms Quickly and easily access more predefined signals without creating them from scratch
Advanced DDS Sampling Technology Instrument automatically selects the best output point in an arbitrary wave to maintain maximum sampling rate.

Product View

DG1000

Specs

Please scroll to the sides when using small displays
Model Output Frequency- SINEOutput Frequency- SquareChannelsArbitrary Waveform Length Price (CAD)
DG1022 20 MHz5 MHz2 channels4 K OBSOLETE Recommended: DG822
DG1022A 25 MHz5 MHz2 channels4 K OBSOLETE Recommended: DG822

 Compare Product Families

Specifications:

 DG1022 & DG1022A Specs

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

Please scroll to the sides when using small displays

Power Amplifier

PA1011
10W POWER AMPLIFIER FOR GENERATORS. Requires generator to function.



$596

Please scroll to the sides when using small displays
CB-BNC-BNC-MM-100

BNC Cable (1 meter length)

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Rack Mount Kit

RM-DG
Rack mount kit for DG1022, DG1022A, and DM3000 family.



$230

Power Amplifier

PA1011
10W POWER AMPLIFIER FOR GENERATORS. Requires generator to function.



$596
